Broadband Optical Isolator

 /1040±50nm Broadband PM Fiber Optic Isolator

1040±50nm Broadband Polarization Maintaining Fiber Optic Isolator
1040±50nm Broadband Polarization Maintaining Fiber Optic Isolator

1040±50nm Broadband PM Fiber Optic Isolator

Wavelength: 1040nm

Bandwidth: ±50nm

Isolator Type: Polarization Maintaining

Fiber Type: PM Panda Fiber

Max. Handling Power: 500mW CW

Inquiry now Download pdf
1040±50nm Broadband PM Fiber Optic Isolator
        1040±50nm Broadband Polarization Maintaining Optical Isolator is a fiber passive component built with TGG crystal, it
allows light signal to be delivered in one forward direction and avoid the back reflection light, it's widely used in OCT
system, fiber optic sensor system to protect the light source and lower down the system optical signal noise. The hgiher
power type is available upon request.
Application: Features:
OCT
Fiber Optic Sensor
Fiber Laser
Lab And Research 		High Isolation
Wide Band
High Extinction Ratio
High Reliability
Specification:
Parameter Symbol Value Unit
Center Wavelength λ 1040 nm
Bandwidth BW ±50 nm
Typ. Insertion Loss IL 0.9 dB
Max. Insertion Loss IL 1.4 dB
Typ. Peak Isolation Iso 25 dB
Min. Isolation Iso 18 dB
Min. Extinction Ratio for Fast Axis Blocked ER 20 dB
Min. Extinction Ratio for Both Axes Working ER 18 dB
Min. Return Loss RL 50 dB
Max. Optical Power (CW) P 500 (higher power is available) mW
Max. Tensil Load   5 N
Fiber Type   PM Panda fiber -
Operating Temperature T +5~65 ℃
Storage Temperature T -40~85 ℃
Package Dimension     mm
Notice: Above specifications are tested without connector in room temperature @23℃.
             For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, ER will be 2dB lower, slow axis is default aligned to the connector key.

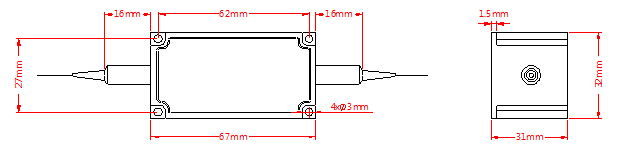

Drawing:
Ordering Information (Part Number):
 BPMISO-WWWW-A-J-LL-CC
 WWWW A    J    LL  CC
 Wavelength  Working Axis    Fiber Jacket  Fiber Length  Connector
 1030 - 1030nm  F - Fast Axis Blocked    B - 250um Bare Fiber  05 - 0.5m  NE - None
 1040 - 1040nm       Slow Axis Working  9 - 900um Loose Tube  10 - 1.0m  FA - FC/APC
 1050 - 1050nm  B - Both Axes Working      15 - 1.5m  FU - FC/UPC
 1053 - 1053nm        20 - 2.0m  SA - SC/APC
 1060 - 1060nm           SS - Specify  SU - SU/APC
 1064 - 1064nm          LA - LC/APC
 SSSS - Specify          LU - LC/UPC
             SS - Specify
