High Power Fiber to Free Space Isolator

 /1064nm High Power SM Fiber To Free Space Beam Out Isolator

High Power SM Fiber To Free Space Beam Out Isolator
High Power SM Fiber To Free Space Beam Out Isolator

1064nm High Power SM Fiber To Free Space Beam Out Isolator

Wavelength: 1064nm

Isolator Type: Polarization Independent

Fiber Type: HI 1060, 10/125DC, 20/125DC, 15/130DC or specify

Max. CW Handling Power: 100, 150, 200 or specify

Max. Peak Power: 5, 10, 20 or specify

Inquiry now Download pdf

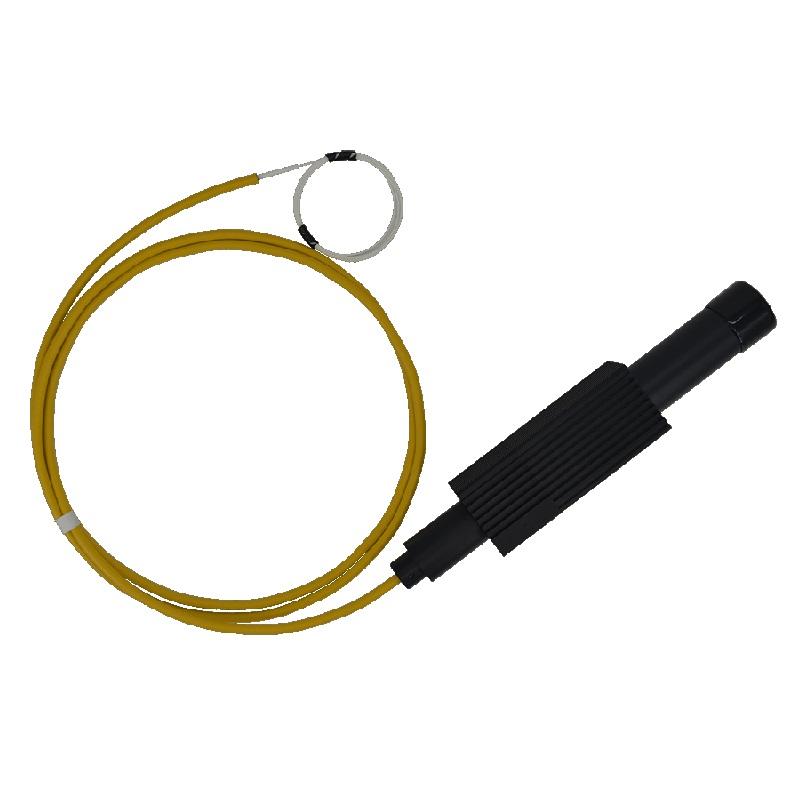

1064nm High Power SM Fiber To Free Space Beam Out Isolator
       1064nm High Power SM Polarization Independent Fiber To Free Space Beam Out Isolator is a fiber passive component
transimits high power laser from fiber into free space with laser beam collimated output. it allows laser to be delivered in
one forward direction and avoid the back reflection light, it's widely used in Fiber Amplifier system, fiber Laser system to
protect the light path system and lower down the optical signal noise. The optical power and output beam diameter can be
customized upon request.
Application:
 Features:
Fiber Optic Amplifier
Fiber Laser
Lab & Research 		High Power
High Isolation
Low Insertion Loss
High Reliability
Specification:
Parameter Symbol Value Unit
Center Wavelength λ 1064 nm
Bandwidth BW ±10 nm
Typ. Insertion Loss (Free Space Output) IL 0.36 dB
Max. Insertion Loss (Free Space Output) IL 0.5 dB
Typ. Isolation @23℃ Iso 30-35 dB
Min. Isolation @23℃ Iso 28 dB
Beam Diameter
(1/e2, M2=1.0, @ 0-1m Working Distance) 		  5±0.5, 6±0.5, 7±0.5 or specify mm
Max. Nominal M2 Degradation   10 %
max. Nominal Focal Shift of Thermal Lens   2 mm
Min. Ellipticity   90 %
Min. Return Loss RL 50 dB
Max. Optical Power (CW) P 100, 150, 200 or specify W
Max. Peak Power P 5, 10, 20 or specify KW
Max. Tensil Load   5 N
Fiber Type   HI 1060, 10/125DC, 20/125DC, 15/130DC or specify -
Operating Temperature T -5~50 ℃
Storage Temperature T -20~75 ℃
Package Dimension     mm
Notice: Above specifications are tested at center wavelength in room temperature @23℃.
             If need pulse type please tell us to confirm.
Drawing:
Ordering Information (Part Number):
HPIBI-WWWW-BB-HHH-J-LL
 WWWW  BB  HHH  FF      J    LL  
 Wavelength  Output Beam Diameter  Handling
 Power 		Fiber Type    Fiber Jacket  Fiber Length  
 1064 - 1064nm  05 - 5mm  100 - 100W  H1 - HI 1060    06 - 6mm Armoured Cable  05 - 0.5m  
 SSSS - Specify  06 - 6mm  150 - 150W  10/125 - 10/125DC  07 - 7mm Armoured Cable  10 - 1.0m  
   07 - 7mm  200 - 200W  20/125 - 20/125DC  10 - 10mm Armoured Cable  15 - 1.5m  
   SS - Specify  SSS - Specify  15/130 - 15/130DC      20 - 2.0m  
       20/130 - 20/130DC      SS - Specify  
       30/250 - 30/250DC        
       SSS - Specify          
