| 1550nm PM Apodized FBG | ||||||||||||||
|
1550nm PM Apodized FBG is built with Polarization Maintaining (PM) fiber, it's widely used in the coherence detection fiber optic sensor field, PM fiber can keep the state of polarization maintaining, which can improve signal-to-noise ratio of the systems, the parameter can be customized upon request. |
||||||||||||||
| Application: | Features: |
 |
||||||||||||
|
Fiber Optic Sensor SystemCoherence Communication Wavelength Filter Lab And Research |
Low Insertion Loss High SMSR Reflectivity Optional High Realibility & Stability |

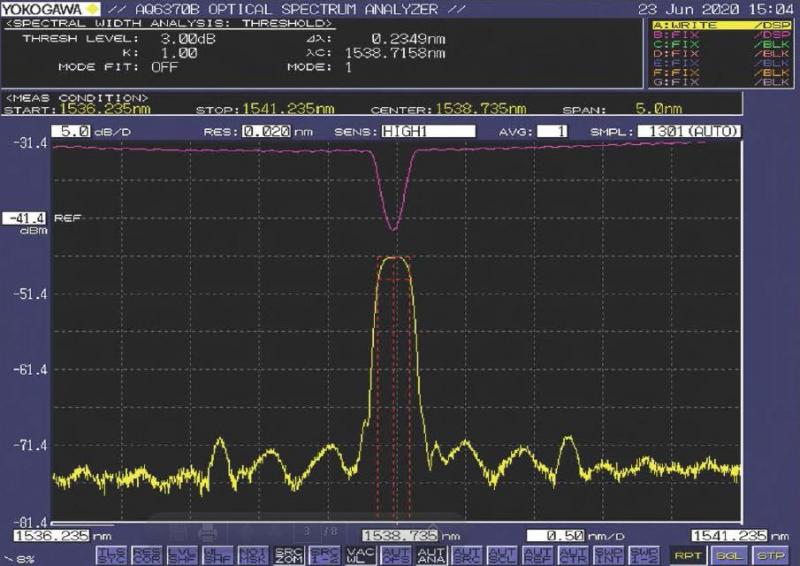

|||||||||||||
| Specification: | ||||||||||||||
| Parameter | Symbol | Value | Unit | |||||||||||
| Center Wavelength | λ | 1510-1590 | nm | |||||||||||
| Tolerance | ±0.5 | nm | ||||||||||||
| Min. Reflectivity | 1-90 | % | ||||||||||||
| Max. 3dB Bandwidth | 0.5 | nm | ||||||||||||
| Min. SMSR | SMSR | 15 | dB | |||||||||||
|
Grating Regions Length |
10, 15, 20 or specify | mm | ||||||||||||
| Min. Tensile Strength |
100 |
kpsi |
||||||||||||
| Fiber Type | PM 1550 Panda Fiber or specify | - | ||||||||||||
| Coating | UV Cured Acrylate | - | ||||||||||||
| Operating Temperature | T | -20~75 | ℃ | |||||||||||
| Storage Temperature | T | -40~85 | ℃ | |||||||||||
| Package Dimension | mm | |||||||||||||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. | ||||||||||||||
| Drawing: | ||||||||||||||
|
||||||||||||||
| Ordering Information (Part Number): | ||||||||||||||
| PMAFBG-WWWW-GG-RR-FF-LL-CC | ||||||||||||||
| WWWW | GG | RR | FF | LL | CC | |||||||||
| Wavelength | Grating Regions Length | Reflectivity | Fiber Type | Fiber Length | Connector | |||||||||
| 1510 - 1510nm | 10 - 10mm | 01 - 1% | PM - PM 1550 Fiber | 05 - 0.5m | NE - None | |||||||||
| 1530 - 1530nm | 15 - 15mm | 90 - 90% | SS - Specify | 08 - 0.8m | FA - FC/APC | |||||||||
| 1550 - 1550nm | 20 - 20mm | SS - Specify | 10 - 1.0m | FU - FC/UPC | ||||||||||
| 1570 - 1570nm | SS - Specify | 15 - 1.5m | SA - SC/APC | |||||||||||
| SSSS - Specify | 20 - 2.0m | SU - SU/APC | ||||||||||||
| SS - Specify | LA - LC/APC | |||||||||||||
| LU - LC/UPC | ||||||||||||||
| SS - Specify | ||||||||||||||
1550nm PM Apodized FBG
wavelength: 1510-1590
Type: Apodized
Fiber Type: PM 1550 Panda fiber or specify
