Description
1064 980nm High Power PM Isolator WDM Hybrid
1064 980nm High Power PM Isolator WDM Hybrid is a fiber passive component which integrated with the function of WDM and fiber isolator, it can be used for combine signal wavelength and pump wavelength with a high isolation to avoid the backward wavelength, It’s widely used in Fiber Laser and Fiber Amplifier application, higher power type is available upon request.
| Application: | Features: |  |
| Fiber Laser | Compact Package | |
| Fiber Amplifier | High Isolation | |
| Testing System | Low Insertion Loss | |
| Lab And Research | High Reliability |
Specification:
| Parameter |
Symbol | Value |
Unit | |
| Signal Wavelength | λ | 1064 (1020-1100) | nm | |
| Pump Wavelength | λ | 980 (970-990) | nm | |
| Typ. Peak Isolation (Signal Reflection) | ISO | 32 | dB | |
| Min. Isolation (Signal Reflection) | ISO | 25 | dB | |
| Max. insertion Loss for Signal | IL | 1.4 | dB | |
| Min. Isolation (Common → Signal @Pump) | ISO | 30 | dB | |
| Min. Isolation (Pump → Common @Signal) | ISO | 15 | dB | |
| Max. insertion Loss for Pump | IL | 0.6 | dB | |
| Min. Extinction Ratio | ER | 18 | dB | |
| Max. Wavelength Dependent Loss | WDL | 0.3 | dB | |
| Min. Return Loss | RL | 50 | dB | |
| Min. Directivity | 50 | dB | ||
| Max. Optical Power (CW) | P | 0.5, 1, 3, 5, 10, 20 or customized | W | |
| Max. Peak Power | P | 5, 10 or customized | KW | |
| Max. Tensil Load | 5 | N | ||
| Fiber Type | PM 980 fiber for Com and Signal, PM 980 or HI 1060 for Pump |
– | ||
| Operating Temperature | T | 10~50 | ℃ | |
| Storage Temperature | T | 0~60 | ℃ | |
| Package Dimension | 64x28x26 | mm | ||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. |
| For devices with connectors, IL will be 0.3dB higher, ER will be 2dB lower, RL will be 5dB lower. |
| Slow axis is default aligned to the connector key. Connectors only 1W CW optical power guarantee. |

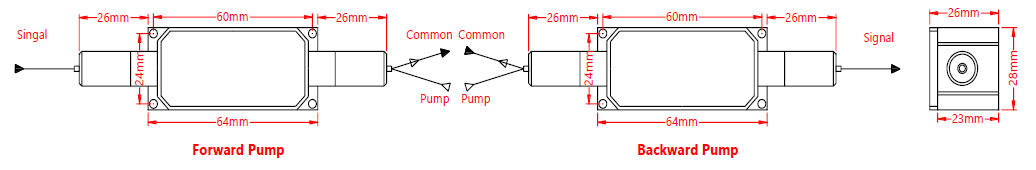

Drawing:
Ordering Information (Part Number):
| HPIW-WWWW-P-A-HH-FF-J-LL-CC |
|||||||
| WWWW | P | A | HH | FF | J | LL | CC |
| Wavelength (Signal/Pump) | Pump Type | Working Axis | Handling Power |
Fiber Type on Pump Port |
Fiber Jacket | Fiber Length | Connector |
| 3098 – 1030/980nm | F – Forward | F – Fast Axis Blocked | Z5 – 0.5W | P9 – PM 980 | B – 250um Bare Fiber | 05 – 0.5m | NE – None |
| 4098 – 1040/980nm | B – Backward | B – Both Axes Working | 01 – 1W | H1 – HI 1060 | 9 – 900um Loose Tube | 08 – 0.8m | FA – FC/APC |
| 5098 – 1050/980nm | 03 – 3W | SS – Specify | 10 – 1.0m | FU – FC/UPC | |||
| 6498 – 1064/980nm | 05 – 5W | 15– 1.5m | SS – Specify | ||||
| SSSS – Specify | 10 – 10W | 20 – 2.0m | |||||
| 20 – 20W | SS – Specify | ||||||
| SS – Specify | |||||||
Example: HPIW-6498-F-B-05-H1-B-10-NE is the PN for 1064 980nm High Power PM Isolator WDM Hybrid, Forward Pump, Both Axes Working, 5W Optical Power, HI 1060 fiber on pump port, 1.0m bare fiber, no connector
