Description
1064 980nm High Power SM Tap Isolator WDM Hybrid
1064 980nm High Power SM Tap Isolator WDM Hybrid is a fiber passive component which integrated with the function of Tap Filter Coupler, Optical Isolator and WDM, Tap Coupler can separate the signal power for monitoring, Optical Isolator for avoiding the backward reflection light, WDM can combine pump light and signal light. It’s widely used in Fiber Laser and Fiber Amplifier application, higher power type is available upon request.
| Application: | Features: |  |
| Fiber Laser | Compact Package | |
| Fiber Amplifier | High Isolation | |
| Testing System | Low Insertion Loss | |
| Lab And Research | High Reliability |
Specification:
| Parameter |
Symbol | Value |
Unit | |||
| Signal Wavelength | λ | 1064 (1020-1100) | nm | |||
| Pump Wavelength | λ | 980 (970-990) | nm | |||
| Min. Isolation @Signal (Com to Signal Port), all SOP | ISO | 25 | ||||
| Min. Wavelength Isolation |
Signal Channel @Pump for Signal→Com | ISO | 25 | dB | ||
| Pump Channel @Signal for Pump→Com | ISO | 15 | dB | |||
| Max. Insertion Loss |
Signal Channel EL for Signal→Com | EL | 1.4 | dB | ||
| Pump Channel for Pump→Com | IL | 0.6 | dB | |||
| Tap Channel for Signal→Tap |
1% | IL | 19.2-23.0 | dB | ||
| 2% | IL | 16.2-18.5 | dB | |||
| 5% | IL | 12.2-14.5 | dB | |||
| Max. Polarization Dependent Loss | PDL | 0.15 | dB | |||
| Min. Return Loss |
RL | 50 | dB | |||
| Min. Directivity | 50 | – | ||||
| Max. Optical Power (CW) | P | 0.5, 1, 3, 5, 10, 20 or customized | W | |||
| Max. Tensil Load | 5 | N | ||||
| Fiber Type | HI 1060 or customized | – | ||||
| Operating Temperature | T | 10~50 | ℃ | |||
| Storage Temperature | T | 0~60 | ℃ | |||
| Package Dimension | 64x28x26 | mm | ||||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. |
| For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. Connectors only 1W CW guarantee. |

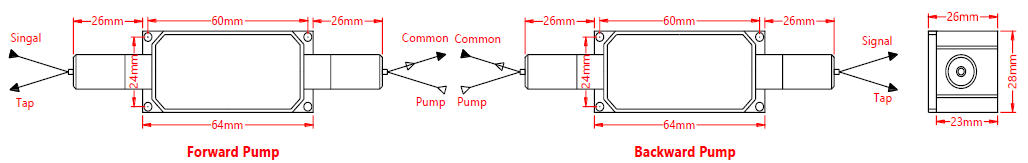

Drawing:
Ordering Information (Part Number):
| HSTIW-WWWW-P-TT-HH-FF-J-LL-CC |
|||||||
| WWWW | P | TT | HH | FF | J | LL | CC |
| Wavelength (Signal/Pump) | Pump Type | Tap Ratio | Handling Power |
Fiber Type on Pump Port |
Fiber Jacket | Fiber Length | Connector |
| 3098 – 1030/980nm | F – Forward Pump | 01 – 1% | Z5 – 0.5W | H1 – HI 1060 | B – 250um Bare Fiber | 05 – 0.5m | NE – None |
| 4098 – 1040/980nm | B – Backward Pump | 02 – 2% | 01 – 1W | SS – Specify | 9 – 900um Loose Tube | 08 – 0.8m | FA – FC/APC |
| 5098 – 1050/980nm | 03 – 3% | 03 – 3W | 10 – 1.0m | FU – FC/UPC | |||
| 6498 – 1064/980nm | 05– 5% | 05 – 5W | 15– 1.5m | SS – Specify | |||
| SSSS – Specify | 10 – 10% | 10 – 10W | 20 – 2.0m | ||||
| SS – Specify | 20 – 20W | SS – Specify | |||||
| SS – Specify | |||||||
Example: HSTIW-6498-F-01-05-H1-B-10-NE is the PN for 1064 980nm High Power SM Tap Isolator WDM Hybrid, Forward Pump, 1% tap, 5W Optical Power, HI 1060 fiber on pump port, 1.0m bare fiber, no connector
