Description
1310nm Mini SM Pigtailed InGaAs PIN Photodiode
1310nm Mini SM Pigtailed InGaAs Photodiode is a semiconductor optoelectronic product designed for detecting light signal by transfering the light signal to electric signal, SM Pigtailed InGaAs Photodiode is built with InGaAs chip material and terminated with SM pigtail to detect the light with high responsibility and low dark current, it’s widely used in fiber optic sensor and optic electric communication field, the pigtailed fiber can be customized upon request.
| Application: | Features: |  |
| Fiber Communication | High Response | |
| Fiber Optic Sensor | Low Dark Current | |
| Computed Tomography | Compact Package | |
| Testing System | High Reliability |
Absolute Maximum Ratings:
| Parameter |
Symbol | Value |
Unit | ||
| Reverse Voltage | Vr | 12 | V | ||
| Forward Current | If | 10 | mA | ||
| Operating Temperature | T | -40~+85 | ℃ | ||
| Typ. Peak Isolation (Signal Reflection) |
T | -40~+85 | ℃ | ||
| Min. Isolation (Signal Reflection) |
T | 30 | ℃ | ||
| Lead Solder Time | 10 | S | |||
| Notice: Above specifications should not be exceeded, or the Photodiode will be seriously damaged. |
Optical and Electrical Specification:
| Parameter |
Symbol | Min. |
Typ. | Max. | Unit | Condition | |
| Wavelength Range | λ | 1100 | 1310 | 1650 | nm | ||
| Saturated Optical Power | P | 10 | dBm | Vr=5V | |||
| Dark Current | Id | 0.03 | 0.16 | nA | Vr=5V | ||
| Responsivity | λ=1310nm | R | 0.8 | 0.85 | A/W | ||
| λ=1550nm | 0.85 | 0.9 | A/W | ||||
| Operating Voltage | Vr | 5 | V | ||||
| Breakdown Reverse voltage | Vb | 15 | V | Ir=10uA | |||
| Frequency Bandwidth | Bw | GHz | |||||
| Junction capacitance | Cj | 0.65 | 0.80 | Pf | Vr=5V | ||
| Return Loss | RL | 45 | 50 | dB | |||
| Fiber Type | SMF-28e, G657A1, G657A2, G657B3 Fiber | ||||||
| Notice: Above specifications are tested in room temperature at 25℃. |
| Specifications may change without notice. |

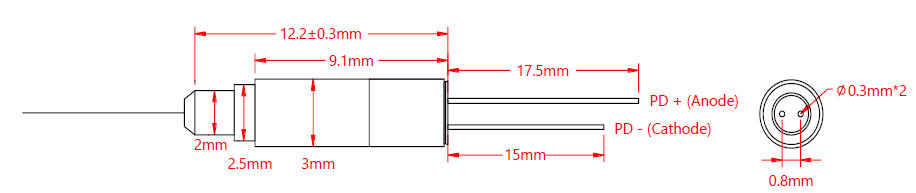

Drawing:
Pin Information:
Ordering Information (Part Number):
| SMNIPD-WWWW-BB-FF-J-LL-CC |
|||||
| WWWW | BB | FF | J | LL | CC |
| Response Wavelength | Bandwidth | Fiber Type | Fiber Jacket | Fiber Length | Connector |
| 1310 – 1130nm | 02 – 2GHz | S2 – SMF-28e | B – 250um Bare Fiber | 05 – 0.5m | NE – None |
| 1550 – 1550nm | A1 – G657A1 | 9 – 900um Loose Tube | 08 – 0.8m | FA – FC/APC | |
| SSSS– Specify | A2 – G657A2 | 10 – 1.0m | FU – FC/UPC | ||
| B3 – G657B3 | 15– 1.5m | SA – SC/APC | |||
| SS – Specify | 20 – 2.0m | SU – SC/UPC | |||
| SS – Specify | LA – LC/APC | ||||
| LU – LC/UPC | |||||
| TA – ST/APC | |||||
| TU – ST/UPC | |||||
| SS – Specify | |||||
Example: SMNIPD-1310-02-S2-B-10-NE is the PN for 1310nm Mini SM Pigtailed InGaAs PIN Photodiode, 2GHz, 1.0m SMF-28e bare fiber, no connector
