1550nm MPO SM Pigtailed InGaAs PIN Mini PD Array

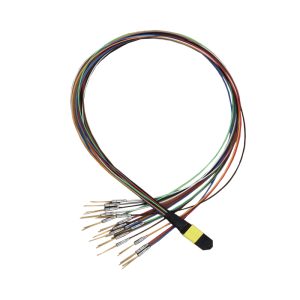

1550nm MPO SM Pigtailed InGaAs PIN Mini PD Array is an optoelectronic product which can detect light signal by transfering the light optical signal to electric signal, it’s built with InGaAs chip material to detect the light signal from the pigtailed fiber, the MPO pigtailed fiber can be 4. 8, 12, 16, 24 channel. it’s widely used for monitoring the optical power in fiber optic sensor and optic electric communication field.
| Application: | Features: |  |
| Fiber Communication | High Response | |
| Fiber Optic Sensor | Low Dark Current | |
| Computed Tomography | Compact Package | |
| Testing System | High Reliability |
Absolute Maximum Ratings:
| Parameter |
Symbol | Value |
Unit | ||
| Reverse Voltage | Vr | 12 | V | ||
| Forward Current | If | 10 | mA | ||
| Operating Temperature | T | -40~+85 | ℃ | ||
| Storage Temperature | T | -40~+85 | ℃ | ||
| Solder Temperature | T | 30 | ℃ | ||
| Lead Solder Time | 10 | S | |||
| Notice: Above specifications should not be exceeded, or the Photodiode will be seriously damaged. |
Optical and Electrical Specification:
| Parameter |
Symbol | Min. |
Typ. | Max. | Unit | Condition | |
| Wavelength Range | λ | 1100 | 1550 | 1650 | nm | ||
| Saturated Optical Power | P | 10 | dBm | Vr=5V | |||
| Dark Current | Id | 0.05 | 0.2 | nA | Vr=5V | ||
| Responsivity | λ=1310nm | R | 0.8 | 0.85 | A/W | ||
| λ=1550nm | 0.85 | 0.9 | A/W | ||||
| Operating Voltage | Vr | 5 | V | ||||
| Breakdown Reverse voltage | Vb | 15 | V | Ir=10uA | |||
| Frequency Bandwidth | Bw | 2 | GHz | ||||
| Junction capacitance | Cj | 0.65 | 0.80 | Pf | Vr=5V | ||
| Return Loss | RL | 45 | 50 | dB | |||
| Fiber Type | SMF-28e, G657A1, G657A2, G657B3 Fiber | ||||||
| Notice: Above specifications are tested in room temperature at 25℃. |
| Specifications may change without notice. |

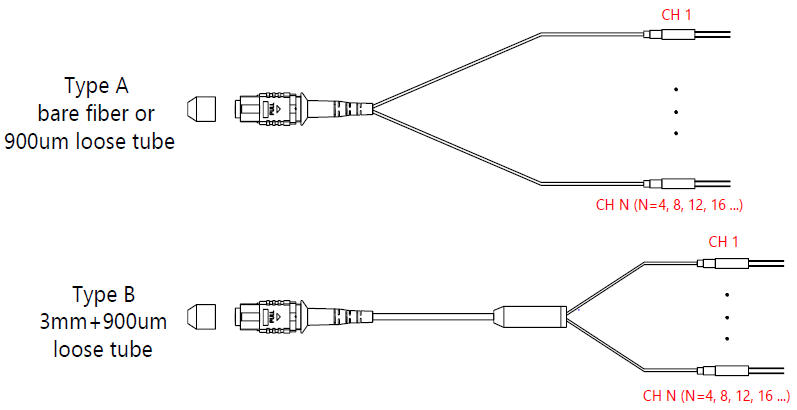

MPO Cord Type:
Drawing:
Pin Information:
Ordering Information (Part Number):
| SMNIPD-WWWW-TT-CC-FF-J-LL-CCCC |
||||||
| WWWW | TT | CC | FF | J | LL | CCCC |
| Wavelength | MPO Cord Type | Channel | Fiber Type | Fiber Jacket | Fiber Length | Connector |
| 1550 – 1550nm | A – Type A | 04 – 4CH | S2 – SMF-28e | B – 250um Bare Fiber | 05 – 0.5m | MALM – MPO/APC, Low Loss, Male |
| SSSS– Specify | B – Type B | 08 – 8CH | A1 – G657A1 | 9 – 900um Loose Tube | 08 – 0.8m | MALF – MPO/APC, Low Loss, Female |
| 12 – 12CH | A2 – G657A2 | 39 – 3mm+900um Loose Tube | 10 – 1.0m | MULM – MPO/UPC, Low Loss, Male | ||
| 16 – 16CH | B3 – G657B3 | 15– 1.5m | MULF – MPO/UPC, Low Loss, Female | |||
| 24 – 24CH | SS – Specify | 20 – 2.0m | TALM – MTP/APC, Low Loss, Male | |||
| SS – Specify | SS – Specify | TALF – MTP/APC, Low Loss, Female | ||||
| SSSS – Specify | ||||||
Example: SMNIPD-1550-A-08-S2-9-10-MALM is the PN for 1550nm MPO SM Pigtailed InGaAs PIN Mini PD Array, 2GHz, A type, 8CH, 1.0m SMF-28e fiber, 900um loose tube, MPO/APC, Low Loss, Male
