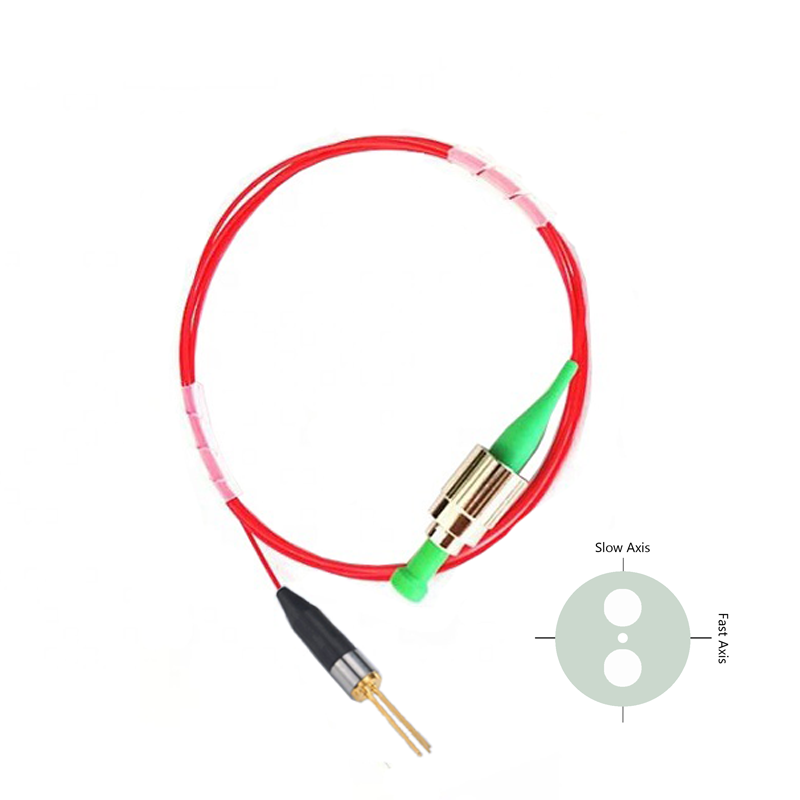

1550nm PM Pigtailed InGaAs PIN Photodiode

Wavelength: 1550nm

PD Type: Fiber Pigtailed

Chip Material: InGaAs

Fiber Type: PM 1550 Panda Fiber


1550nm PM Pigtailed InGaAs PIN Photodiode
     1550nm PM Pigtailed InGaAs PIN Photodiode is a semiconductor product which can detect light signal by transfering
the light optical signal to electric signal, it's built with InGaAs chip material to detect the light signal from the pigtailed PM
fiber. The InGaAs Photodiode (PD) is widely used for monitoring the optical power in fiber optic sensor and optic electric
communication field.
Application:
Features:
Fiber Communication
Fiber Optic Sensor
Computed Tomography
Testing System
High Response
Low Dark Current
Low Capacitance
High Reliability
Absolute Maxmum Ratings:
Parameter Symbol Value Unit
Reverse Voltage Vr 30 V
Forward Current If 10 mA
Operating Temperature T -40~+85
Storage Temperature T -40~+85
Solder Temperature T 260
Lead Solder Time 10 S
Notice: Above specifications should not be exceeded, or the Photodiode will be seriously damaged.
Optical and Electrical Specification:
Parameter Symbol Min. Tpy. Max. Unit Test Condition
Wavelength Range λ 1100 1550 1650 nm
Saturation Input Power P 5 mW Vr=5V
Dark Current Id 0.2 0.5 nA Vr=5V
Responsivity R 0.8 0.95 2 A/W
Frequency Bandwidth Bw 2.5 GHz
Junction Capacitance Cj 0.6 0.75 pF Vr=5V
Active Diameter Ad 55 75 1000 um
Response Time (Raise/Fall) Tr/Tf 0.1 0.3 ns
Return Loss RL 45 50 dB
Fiber Type PM 1550 Panda Fiber
Notice: Above specifications are tested in room temperature at 25.
            Slow axis is default aligned to the connector key.
            Specifications may change without notice.
Drawing:
Pin Information:

Ordering Information (Part Number):
 PMIPD-WWWW-AA-S-P-J-LL-CC
 WWWW  AA  S   P   J  LL  CC
 Wavelength  Active Diameter  Saddle Type  Pin
 Assingment
 Fiber Jacket  Fiber Length  Connector
 1550 - 1550nm  55 - 55um  A - Type A  A - Type A  B - 250um Bare Fiber  05 - 0.5m  NE - None
 60 - 60um  B - Type B  B - Type B  L - 900um Loose Tube  10 - 1.0m  FA - FC/APC
 75 - 75um  C - Type C  C - Type c  15 - 1.5m  FU - FC/UPC
 80 - 80um  D - Type D        20 - 2.0m  LA - LC/APC
 1H - 100um  E - Type E  SS - Specify  LU - LC/UPC
 1K - 1000um  SA - SC/APC
 SU - SC/UPC
 ST - ST/UPC
 SS - Specify
Notification:
1. The Semiconductor Optoelectronic products are particulary sensitive of ESD (electro-static discharge), it's recommended to
    use grounded anti-static wrist straps and grounded anti-static mats before handling the products.
2. Always take anti-static measures to storage the products when not in use.
