| 1064nm PM Faraday Rotator Mirror | ||||||||
|
1064nm PM Faraday Rotator Mirror is a fiber component which can change state of polarization (SOP), the polarization light will rotate 45° when the input light passes the faraday rotator, and will rotate another 45° after the mirror turns the light back, the output light will have a polarization state rotated 90°, and orthogonal to the input polarization state. It's widely used in Fiber Laser, Fiber Amplifier System and Fiber Optic Sensor. |
||||||||
|
||||||||
|
Application: |
Features: |
|||||||
|
Fiber Optic Amplifier Fiber Optic Sensor Fiber Laser Lab And Research |
High Extinction Ratio High Power Available Low Insertion Loss High Reliability |
|||||||
| Specification: | ||||||||
| Parameter | Symbol | Value | Unit | |||||
| Center Wavelength | λ | 1064 | nm | |||||
| Bandwidth | BW | ±5 | nm | |||||
| Typ. Insertion Loss | IL | 2.6 | dB | |||||
| Max. Insertion Loss | IL | 3.0 | dB | |||||
| Faraday Rotate Angle (Single Pass) | 45±3 | Degree | ||||||
| Min. Extinction Ratio | ER | 20 | dB | |||||
| Max. Optical Power (CW) | P | 150 | mW | |||||
| Max. Tensil Load | 5 | N | ||||||
| Fiber Type | PM Panda fiber | - | ||||||
| Operating Temperature | T | -5~50 | ℃ | |||||
| Storage Temperature | T | -40~85 | ℃ | |||||
| Package Dimension | Φ5.5×L35 | mm | ||||||
| Notice: Above specifications are tested at center wavelength without connector in room temperature @23℃. | ||||||||
| For devices with connectors, IL will be 0.3dB higher, ER will be 2dB lower, slow axis is default aligned to the connector key. | ||||||||

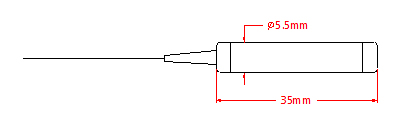

| Drawing: |
|
|||||||
| Ordering Information (Part Number): | ||||||||
| PMFRM-WWWW-J-LL-CC | ||||||||
| WWWW | J | LL | CC | |||||
| Wavelength | Fiber Jacket | Fiber Length | Connector | |||||
| 1064 - 1064nm | B - 250um Bare Fiber | 05 - 0.5m | NE - None | |||||
| 9 - 900um Loose Tube | 10 - 1.0m | FA - FC/APC | ||||||
| 2 - 2.0mm Loose Tube | 15 - 1.5m | FU - FC/UPC | ||||||
| 3 - 3.0mm Loose Tube | 20 - 2.0m | SA - SC/APC | ||||||
| SS - Specify | SU - SU/APC | |||||||
| LA - LC/APC | ||||||||
| LU - LC/UPC | ||||||||
| SS - Specify | ||||||||
1064nm PM Faraday Rotator Mirror
Wavelength: 1064nm
Fiber Type: PM Panda Fiber
Max. Handling Power: 150mW CW
