1310/1490&1550nm 1x2 Filter WDM

Wavelength: P1310, R1490&1550

Configuration: 1x2

Fiber Type: SMF-28e fiber

Max. Handling Power: 500mW CW

1310/1490&1550nm 1x2 Filter WDM
      1310/1490&1550nm Wavelength Division Mulitplexer is a fiber component built with thin-film filter technology, it can be
used to sepreate or combine 1310nm and 1490, 1550nm wavelength signal, it's widely used in CATV Systems and Fiber Optic
Testing Systems, the high power type is available upon request.
Application: Features:
CATV
FTTx
Testing Instrument
Lab And Research
Epoxy Free
High Isolation
Low Insertion Loss
Optical Path Reversibility
Specification:
Parameter Symbol Value Unit
Type P1310 R1490&1550 nm
Pass Band λ 1310 (1260-1360) nm
Reflect Band λ 1490 (1480-1490), 1550 (1540-1560) nm
Max. Insertion Loss @Pass Channel IL 0.6 dB
Max. Insertion Loss @Reflect Channel IL 0.4 dB
Min. Isolation @Pass Channel Iso 30 dB
Min. Isolation @Reflect Channel Iso 15 dB
Max. Insertion Loss Temperature Sensitivity 0.5 dB
Max. Polarization Dependent Loss PDL 0.1 dB
Max. Polarization Mode Dispersion PMD 0.1 ps
Min. Directivity 50 dB
Min. Return Loss RL 50 dB
Max. Optical Power (CW) P 500 mW
Max. Tensil Load 5 N
Fiber Type SMF-28e fiber -
Operating Temperature T -5~75
Storage Temperature T -40~85
Package Dimension Φ5.5×L35 mm
Notice: Above specifications are tested at center wavelength without connector in room temperature @23
             For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower.

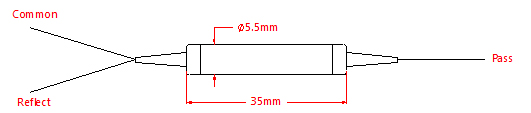

Drawing:
Ordering Information (Part Number):
 FWDM-WWWW/WW-D-J-LL-CC
 WWWW/WW  D  J  LL  CC
 Wavelength  Package Dimension  Fiber Jacket  Fiber Length  Connector
 13/1415 - 1310nm Pass,  1 - Φ5.5×L35mm  B - 250um Bare Fiber  05 - 0.5m  NE - None
                 1490&1550nm Reflect  2 - 90x20x10mm  9 - 900um Loose Tube  10 - 1.0m  FA - FC/APC
 S - Specify  2 - 2.0mm Loose Tube  15 - 1.5m  FU - FC/UPC
 3 - 3.0mm Loose Tube  20 - 2.0m  SA - SC/APC
 SS - Specify      SU - SU/APC
 LA - LC/APC
 LU - LC/UPC
 SS - Specify
