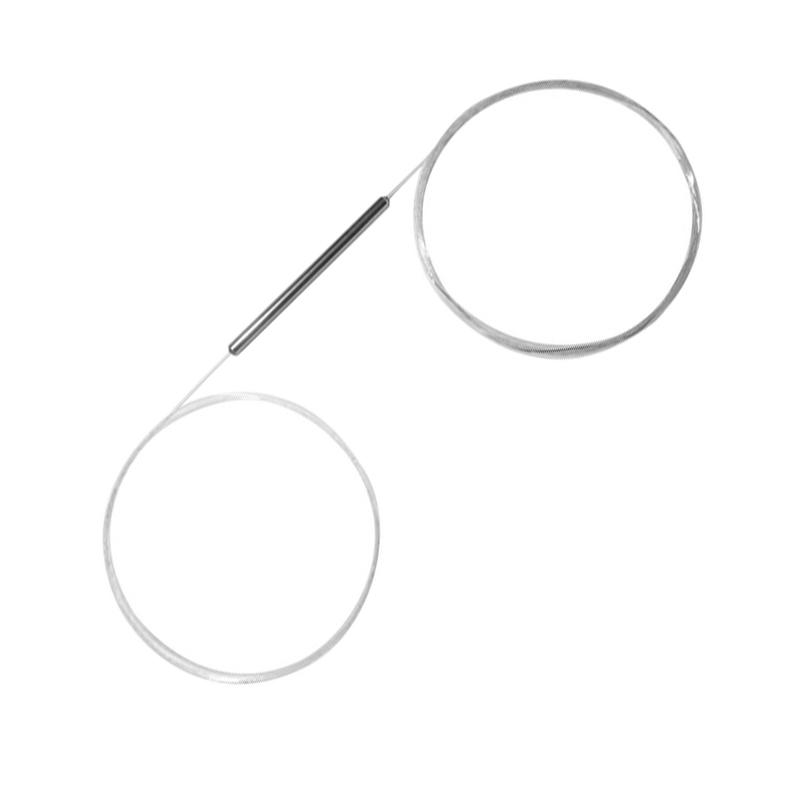

532nm 1x2 2x2 SM Fiber Fused Coupler

Wavelength: 532nm

Fiber Type: 460-HP Fiber

Max. Optical Power: 2W CW

532nm 1x2 2x2 SM Fiber Fused Coupler
            532nm 1x2, 2x2 SM Fused Coupler is built with fused biconical taper (FBT) technology, optical signal power can be
splitted into two parts with even or various coupling ratio by the FBT Coupler, it's widely applied in fiber optic transmission
and fiber optic sensor field, the MM and PM types are available upon request.

Application:
Features:
Optical Signal Transmission
Fiber Optic Sensor
Fiber Amplifier
Optical Diffraction System
Low Excess Loss
High Return Loss
Low Insertion Loss
High Reliability
Specification:
Parameter Symbol Value Unit
Center Wavelength λ 532 nm
Bandwidth BW ±10 nm
Max. Excess Loss EL 0.2 dB
Max. Insertion Loss 50/50 IL 3.8/3.8 dB
40/60 5.0/3.1 dB
30/70 6.2/2.4 dB
20/80 8.0/1.8 dB
10/90 11.0/1.3 dB
5/95 14.5/1.1 dB
3/97 19.0/1.05 dB
2/98 18/0.9 dB
1/99 21.0/0.9 dB
Max. Polarization Dependent Loss PDL 0.2 dB
Min. Directivity 50 dB
Min. Return Loss RL 50 dB
Fiber Type 460-HP, 630-HP fiber -
Max. Tensil Load 5 N
Max. Optical Power (CW) P 2 W
Operating Temperature T -40~75
Storage Temperature T -40~85
Package Dimension Φ3.0xL40 for Bare Fiber
Φ3.0xL54 for Bare Fiber or 900um Loose Tube
90x20x10 for 2.0 or 3.0mm Loose Tube
100x80x10 for 2.0 or 3.0mm Loose Tube
mm
Notice: Above specifications are tested at center wavelength without connector in room temperature @23
              For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower, Connectors only 1W CW optical power guarantee.
Drawing:

Ordering Information (Part Number):
 SMFUC-WWW-PP-RR-FF-D-J-LL-CC
 WWW  PP  RR  FF  D  J  LL  CC
 Wavelength  Port  Coupling
 Ratio
 Fiber Type  Package Dimension  Fiber Jacket  Fiber Length  Connector
 532 - 532nm  12 - 1x2  01 - 1/99  4H - 460-HP  1 - Φ3.0x40mm  B - 250um Bare Fiber  05 - 0.5m  NE - None
 633 - 633nm  22 - 2x2  02 - 2/98  6H - 630-HP  2 - Φ3.0x54mm  9 - 900um Loose  10 - 1.0m  FA - FC/APC
 650 - 650nm  03 - 3/97  SS - Specify  3 - 90x20x10mm       Tube  15 - 1.5m  FU - FC/UPC
 680 - 680nm  05 - 5/95  4 - 100x80x10mm  2 - 2.0mm Loose   20 - 2.0m  SA - SC/APC
 10 - 10/90       Tube  SS - Specify  SU - SU/APC
 20 - 20/80  3 - 3.0mm Loose   LA - LC/APC
 30 - 30/70       Tube  LU - LC/UPC
 40 - 40/60  SS - Specify
 50 - 50/50
 SS - Specify
