| 460nm SM Fiber Patchcord | ||||||||||
|
460nm Singlemode (SM) Fiber Patchcord is built with SM fiber, it's widely used in Fiber Laser System, Testing System, Fiber Amplifier and Fiber Optic Communication field, the termination connector can be FC, SC, LC. ST, the jacket can be 0.9, 2.0, 3.0mm or armored type. |
||||||||||
|
||||||||||
| Application: | Features: | |||||||||
|
Fiber Laser System Testing System Fiber Amplifier Fiber Optic Communication |
Low Insertion Loss High Return Loss High Quality Ferrule High Reliability |
|||||||||
| Optical Specification: | ||||||||||
| Parameter | Symbol | Value | Unit | |||||||
| Center Wavelength | λ | 460 | nm | |||||||
| Typ. Insertion Loss | IL | 1.5 | dB | |||||||
| Max. Insertion Loss | IL | 1.8 | dB | |||||||
| Min. Return Loss | RL | 50 for UPC, 60 for APC | dB | |||||||
| Min. Plug Times | 1000 | Times | ||||||||
| Fiber Type | 460-HP fiber | - | ||||||||
| Tensil Load | 5 | N | ||||||||
| Max. Optical Power | P | 500 | mW | |||||||
| Operating Temperature | T | -40~75 | ℃ | |||||||
| Storage Temperature | T | -40~85 | ℃ | |||||||
| Notice: Above specifications are tested at center wavelength in room temperature @23℃. | ||||||||||

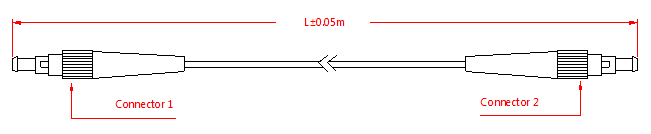

| Drawing: | ||||||||||
|
||||||||||
| Ordering Information (Part Number): | ||||||||||
| SMFP-WWW-J-LL-CC-CC | ||||||||||
| WWW | J | LL | CC | CC | ||||||
| Wavelength | Fiber Jacket | Fiber Length | Connector 1 | Connector 2 | ||||||
| 445 - 445nm | 9 - 900um Loose Tube | 05 - 0.5m | FA - FC/APC | FA - FC/APC | ||||||
| 460 - 460nm | 2 - 2.0mm Loose Tube | 10 - 1.0m | FU - FC/UPC | FU - FC/UPC | ||||||
| 473 - 473nm | 3 - 3.0mm Loose Tube | 15 - 1.5m | SA - SC/APC | SA - SC/APC | ||||||
| 488 - 488nm | A - Armored | 20 - 2.0m | SU - SC/UPC | SU - SC/UPC | ||||||
| 520 - 520nm | 30 - 3.0m | LA - LC/APC | LA - LC/APC | |||||||
| SS - Specify | LU- LC/UPC | LU - LC/UPC | ||||||||
| ST- ST/UPC | ST - ST/UPC | |||||||||
