High Power 980/1064nm 1x2 Filter WDM

Wavelength: 980/1064nm

Configuration: 1x2

Fiber Type: HI 1060 Fiber

Max. CW Handling Power: 1, 2, 3. 5 or Specify

Max. Peak Power: 1 kW or Specify

High Power 980/1064nm 1x2 Filter WDM
      High Power 980/1064nm Wavelength Division Mulitplexer is a fiber component built with thin-film filter technology,
it can be used to sepreate or combine 980nm and 1064nm wavelength signal, it's widely used in Fiber Laser Systems
and Fiber Amplifier Systems, the handling power can be customized.
Application: Features:
Fiber Laser
EDFA
Optical Diffraction System
Lab And Research
High Power
High Isolation
Low Insertion Loss
Optical Path Reversibility
Specification:
Parameter Symbol Value Unit
Type P980 R1064 P1064 R980 nm
Pass Band λ 980 (960-990) 1064 (1020-1080) nm
Reflect Band λ 1064 (1020-1080) 980 (960-990) nm
Max. Insertion Loss @Pass Channel IL 0.8 dB
Max. Insertion Loss @Reflect Channel IL 0.6 dB
Min. Isolation @Pass Channel Iso 30 dB
Min. Isolation @Reflect Channel Iso 15 dB
Max. Insertion Loss Temperature Sensitivity 0.5 dB
Max. Polarization Dependent Loss PDL 0.1 dB
Max. Polarization Mode Dispersion PMD 0.1 ps
Min. Directivity 55 dB
Min. Return Loss RL 50 dB
Max. Optical Power (CW) P 1, 2, 3, 5 or specify W
Max. Tensil Load 5 N
Fiber Type HI 1060 -
Operating Temperature T -5~75
Storage Temperature T -40~85
Package Dimension Φ5.5×L35 mm
Notice: Above specifications are tested at center wavelength without connector in room temperature @23
             For devices with connectors, IL will be 0.3dB higher, RL will be 5dB lower. connectors only 1W CW optical power guarantee.

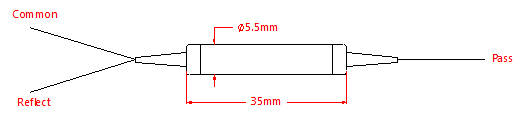

Drawing:
Ordering Information (Part Number):
 HPFWDM-WWW/WWWW-HH-D-J-LL-CC
 WWW/WWWW  HH  D  J  LL  CC
 Wavelength  Handling
 Power
 Package Dimension  Fiber Jacket  Fiber Length  Connector
 980/1064 - 980nm Pass,  01 - 1W  1 - Φ5.5×L35mm  B - 250um Bare Fiber  05 - 0.5m  NE - None
                   1064nm Reflect  02 - 2W  2 - 90x20x10mm  9 - 900um Loose Tube  10 - 1.0m  FA - FC/APC
 1064/980 - 1064nm Pass,  03 - 3W  S - Specify  2 - 2.0mm Loose Tube  15 - 1.5m  FU - FC/UPC
                   980nm Reflect  05 - 5W  3 - 3.0mm Loose Tube  20 - 2.0m  SA - SC/APC
 SS - Specify  SS - Specify      SU - SU/APC
 LA - LC/APC
 LU - LC/UPC
 SS - Specify
